LXS Manual Single-Girder Suspension Crane
1. Product Overview
The LXS/SDX Manual Single-Girder Suspension Crane is a fully manual overhead lifting device consisting of a crane travel mechanism, main girder, manual trolley, and hand chain hoist. Its key difference from a standard manual overhead crane is the suspended mounting configuration — it requires no corbels or columns in the factory building and can be directly attached to the roof truss I-beam for immediate use.
Available with a lifting capacity of 0.5 to 3 tons and spans from 3 to 12 meters. With zero electrical power and zero electrical failure risk, it is ideal for workshops without three-phase power, explosion-proof areas, and facilities where the workshop height cannot accommodate a standard overhead crane. Simply hang it on the beam and it's ready to operate — installation and dismantling are equally straightforward.

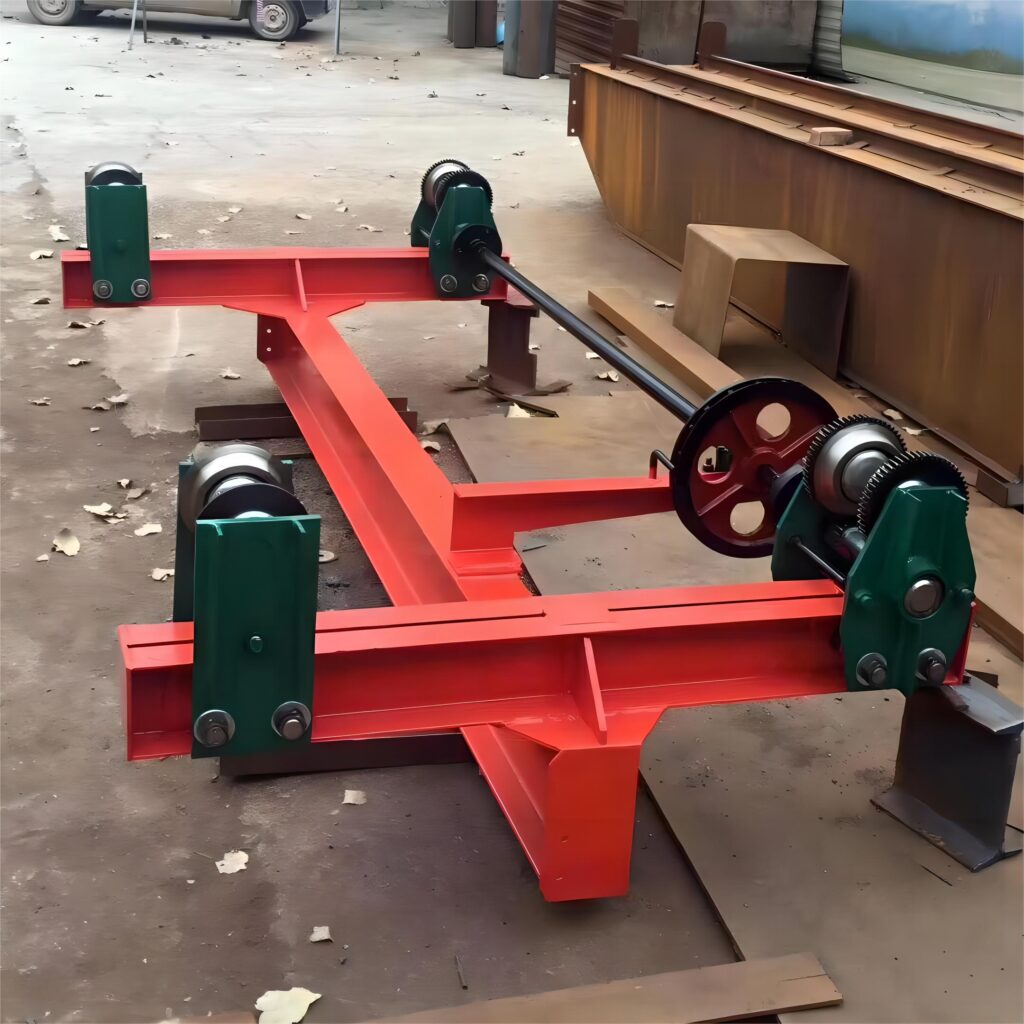

Product Image
2. Models & Specifications
- Model: LXS / SDX (identical product, different designations)
- Lifting Capacity: 0.5t, 1t, 2t, 3t
- Span: 3–12 m, customizable to site requirements
- Drive Type: Fully manual — hand chain drives the long travel mechanism, hand chain hoist for lifting
- Mounting: Suspended type, directly attached to the factory roof truss I-beam — no corbels required
- Design Standard: JB/T 1306-2008
- Production Lead Time: 10–15 days

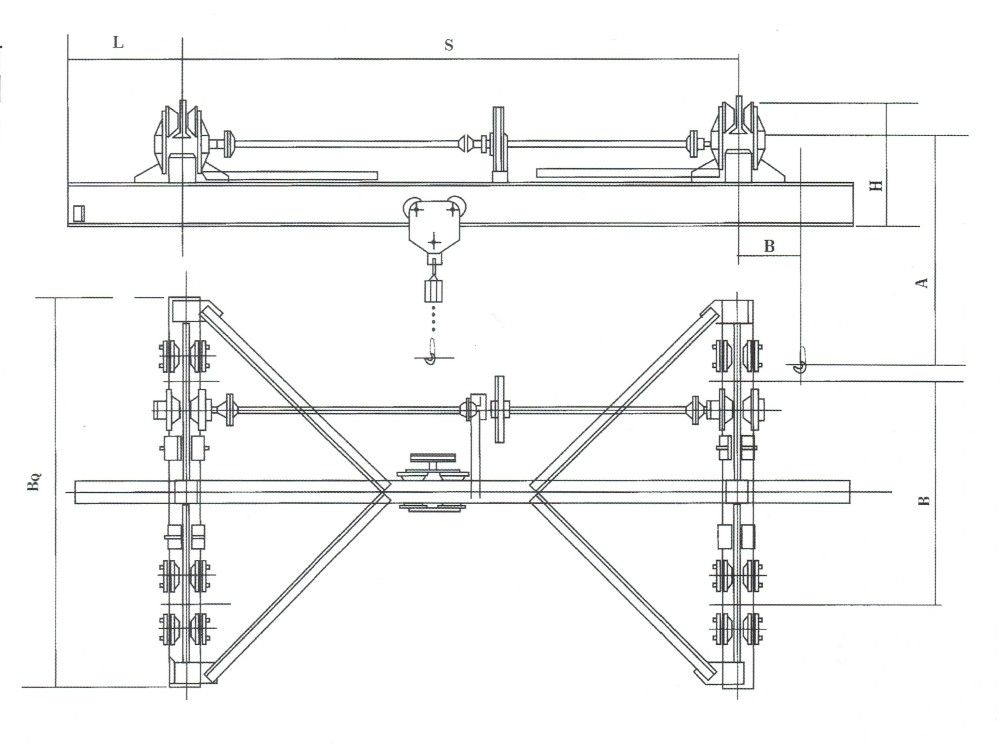

Design Drawing
3. Technical Parameters
The following table lists the key technical parameters for the LXS/SDX Manual Single-Girder Suspension Crane:
SDXQ Manual Single-Girder Suspension Crane — Technical Parameters
| Parameter | 0.5t | 1t | 2t | 3t |
|---|---|---|---|---|
| Span(m) | 3~12 | 3~12 | 3~12 | 3~12 |
| Lifting Height(m) | 2.5~12 | 2.5~12 | 3~12 | 3~12 |
| Crane RailI-Beam | I20a~I30c | I20a~I30c | I24a~I36c | I24a~I36c |
| Matching Trolley / Cross Travel | SDX-3.WA1/2 | SDX-3.WA1 | SDX-3.WA2 | DX-3.WA3 |
| Hand chain hoist | HS1/2 | HS1 | HS2 | HS3 |
SDXQ Manual Single-Girder Suspension Crane — Weight and Wheel Load Parameters
| Lifting Capacity (t) |
Span (m) |
Total Weight (kg) |
Maximum Wheel load(kN) |
Basic Dimensions(mm) | Traction Force(kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | B | BQ | A | S1 | L | Lifting | Crane Bridge / Long Travel | Trolley / Cross Travel | ||||
| 0.5 | 3 | 451 | 1.98 | 525 | 1000 | 1516 | 746 | 805 | 1000 | 19.5 | 6 | 3 |
| 3.5 | 466 | 2.00 | ||||||||||
| 4 | 478 | 2.01 | ||||||||||
| 4.5 | 490 | 2.02 | ||||||||||
| 5 | 501 | 2.04 | ||||||||||
| 5.5 | 602 | 2.20 | 585 | 1200 | 1716 | 800 | 1005 | 1200 | ||||
| 6 | 642 | 2.21 | ||||||||||
| 7 | 678 | 2.26 | ||||||||||
| 8 | 714 | 2.32 | ||||||||||
| 9 | 872 | 2.54 | 605 | 1500 | 2016 | 820 | 1205 | 1400 | ||||
| 10 | 913 | 2.59 | ||||||||||
| 11 | 1078 | 2.76 | 635 | 1700 | 2216 | 850 | ||||||
| 12 | 1127 | 2.81 | ||||||||||
| 1 | 3 | 470 | 2.10 | 525 | 1000 | 1516 | 746 | 805 | 1000 | 24 | 8 | 3 |
| 4 | 499 | 2.13 | ||||||||||
| 5 | 528 | 2.17 | ||||||||||
| 5.5 | 649 | 2.46 | 585 | 1200 | 1716 | 800 | 1005 | 1200 | ||||
| 6 | 685 | 2.50 | ||||||||||
| 7 | 726 | 2.58 | ||||||||||
| 8 | 771 | 2.65 | ||||||||||
| 9 | 933 | 2.89 | 605 | 1500 | 2016 | 820 | 1205 | 1400 | ||||
| 10 | 982 | 2.96 | ||||||||||
| 11 | 1190 | 3.15 | 635 | 1700 | 2216 | 850 | ||||||
| 12 | 1246 | 3.21 | ||||||||||
| 2 | 3 | 581 | 3.46 | 545 | 1100 | 1616 | 790 | 855 | 1100 | 34 | 13 | 4 |
| 4 | 620 | 3.52 | ||||||||||
| 5 | 667 | 3.59 | ||||||||||
| 6 | 825 | 4.10 | 585 | 1200 | 1716 | 800 | 1005 | 1200 | ||||
| 7 | 873 | 4.19 | ||||||||||
| 8 | 922 | 4.29 | ||||||||||
| 9 | 1088 | 4.57 | 605 | 1500 | 2016 | 820 | 1205 | 1400 | ||||
| 10 | 1145 | 4.66 | ||||||||||
| 11 | 1350 | 4.88 | 635 | 1700 | 2216 | 850 | ||||||
| 12 | 1415 | 4.96 | ||||||||||
| 3 | 3 | 640 | 4.22 | 545 | 1100 | 1616 | 790 | 855 | 1100 | 42 | 16 | 5 |
| 4 | 690 | 4.32 | ||||||||||
| 5 | 736 | 4.41 | ||||||||||
| 6 | 910 | 5.10 | 585 | 1200 | 1716 | 800 | 1005 | 1200 | ||||
| 8 | 985 | 5.25 | ||||||||||
