BZD Column Cantilever Crane for Precise Material Handling
Product Introduction
The Fixed Column Jib Crane (BZD series column cantilever crane) offers a rated lifting capacity of 250kg to 5000kg (0.25–5 tons), with a jib length of 2–20m and a maximum lifting height of 12m. It is ideal for light hoisting and handling operations on production lines, assembly lines, in warehouses, and at docks. The BZD fixed column jib crane features a column anchored to the concrete foundation, a jib that slews 360° electrically, and an electric hoist that travels along the jib for full-coverage lifting within the workstation.
Product Specifications
Product Name: BZD Series Fixed Column Jib Crane (Column cantilever crane)
Model: BZD series
Rated Lifting Capacity: 250kg / 0.5t / 1t / 2t / 3t / 5t
Jib Length: 2–20m
Lifting Height: Up to 12m
Slewing Angle: 180°–360° (continuous rotation)
Power Supply: Three-phase AC 380V 50Hz
Customization: Available (jib length, lifting height, and travel speed can be tailored to requirements)
Product Features
Flexible and Universal Configuration: Standardly equipped with the CD1/MD1 series wire rope hoist, offering a lifting speed of 8m/min (dual-speed 8/0.8 optional). Six capacity options from 0.25 to 5 tons make it the most common standard setup for workshop workstations.
360° Full Rotation: The jib rotates up to 360° continuously, covering the entire workstation for maximum operational efficiency.
Dual Control as Standard: Wired pendant + F21-E1B wireless remote control for safe and convenient operation.
Multiple Speed Options: Trolley travel available in manual or electric versions, with multiple lifting speed settings to match different handling rhythms.
Rigorous Quality Control: Duty Class A3/M3, IP54/IP55 Protection, with every unit load-tested before shipment.
Reliable Supply: Standard models are kept in stock, ensuring fast delivery for jib lengths from 2 to 20m.
Working Principle
The working principle of the BZD fixed column jib crane: The fixed column is anchored to the concrete foundation via anchor bolts. The jib is connected to the column through a slewing bearing, and an electric slewing mechanism drives the jib to rotate around the column. The matching electric hoist (or electric chain hoist) is mounted on the trolley rail on the lower flange of the jib and can move horizontally along the jib length. During lifting, the electric hoist raises the load vertically, and the slewing of the jib transports the load horizontally to the target position, achieving full-coverage handling within the designated workstation.
Product Structure
The BZD fixed column jib crane consists of the following core components:
Fixed Column: Fabricated from high-quality structural steel (welded or steel pipe), anchored to the concrete foundation via anchor bolts. It serves as the primary load-bearing structure of the entire crane.
Jib: I-beam or box girder construction, connected to the column via a slewing bearing, capable of 360° electric rotation.
Slewing Mechanism: Electric slewing drive unit that ensures smooth rotation of the jib.
Electric Hoist: Wire rope hoist or chain hoist, mounted on the trolley rail of the jib, moving horizontally along the jib.
Electrical Control System: Dual control with wired pendant and wireless remote, including hoisting, travel, and slewing controls.
Safety Devices: Hoisting limit switch, travel limit switch, Emergency Stop Button, etc.

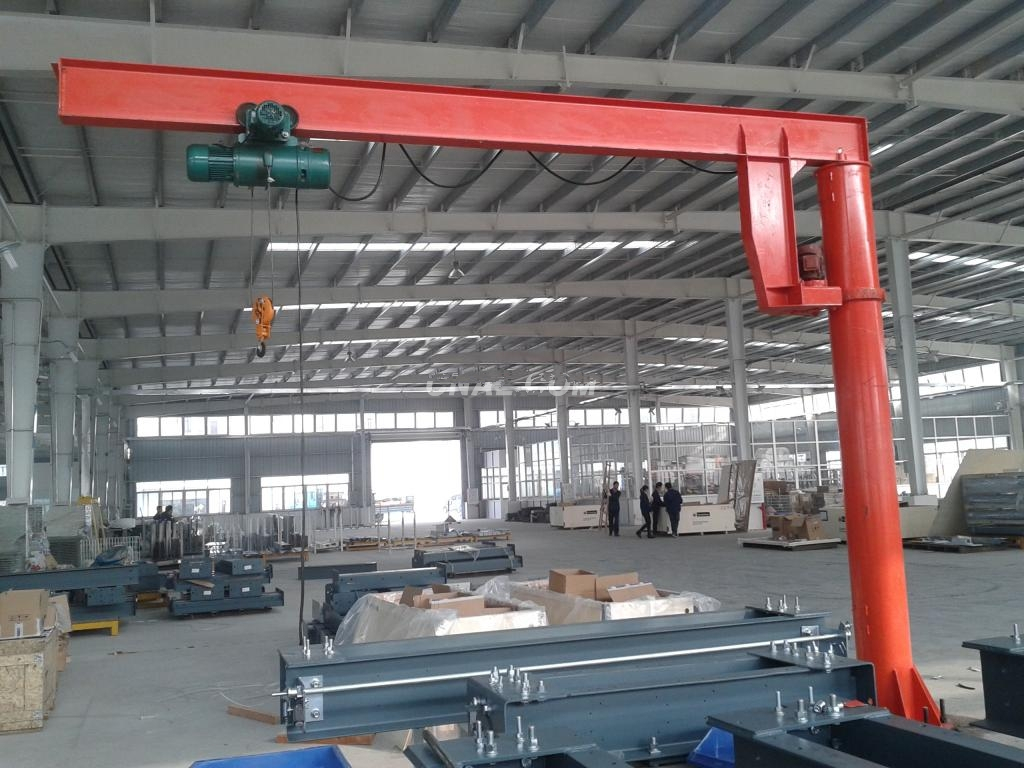

Product Images
Technical Parameters
| Technical Parameters | BZD0.25 | BZD0.5 | BZD1 | BZD2 | BZD3 | BZD5 |
|---|---|---|---|---|---|---|
| Rated Lifting Capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
| Jib length(m) | 2~6 | 2~8 | 3~10 | 4~12 | 5~15 | 6~20 |
| Lifting Height(m) | Maximum 12 | |||||
| Slewing Angle(°) | 360 | |||||
| slewing speed(r/min) | 0.7 | 0.7 | 0.6 | 0.6 | 0.5 | 0.35 |
| Lifting Speed(m/min) | 8 | 8 | 8 | 8 | 8 | 8 |
| Cross Travel Speed(m/min) | 20(Manual push)/ 20~28(Electric) | |||||
| Work Duty / Classification | A3 / M3 | |||||
| Protection Rating (IP) | IP54 / IP55 | |||||
| Operation Mode | Wired pendant control + F21-E1BWireless remote control | |||||
| Power supply Power Supply | Three-phase AC380V 50Hz | |||||
| Duty Cycle | JS=15% | |||||
Applications
The BZD pillar jib crane is widely used in the following scenarios:
Factory Workshops: Material handling and process transfer along production lines.
Assembly Lines: Hoisting and positioning of components during mechanical assembly.
Machine Tool Loading/Unloading: Handling heavy workpieces at machining centers, lathes, milling machines, and similar equipment.
Warehouses & Docks: Lifting and loading/unloading heavy loads in storage areas.
Die & Mold Maintenance: Hoisting and replacement of molds in tool rooms.
Maintenance Stations: Lifting operations during equipment repair and servicing.
Selection Guide
BZD0.25~BZD1 (0.25–1 ton): Jib radius 2–10 m, equipped with MD1 dual-speed hoist (8/0.8 m/min). Ideal for production line stations and light lifting in warehouses. Dual-speed lifting is recommended for precise positioning and efficiency. Reference price: RMB 8,000–20,000.
BZD2~BZD3 (2–3 tons): Jib radius 4–15 m, equipped with CD1-2t/3t hoist at 8 m/min. Suitable for machine tool loading/unloading and assembly lines. An electric trolley and wireless remote control are recommended. Reference price: RMB 20,000–40,000.
BZD5 (5 tons): Jib radius 6–20 m, equipped with CD1-5t hoist at 8 m/min. Designed for maintenance workshops and heavy workpiece handling. Standard features include wireless remote control and electric slewing. Reference price: RMB 40,000–80,000.
Operating Instructions
Pre-Operation Checks: Inspect the electric hoist wire rope/chain for damage, verify the limit switches are functioning properly, and listen for any abnormal noise from the slewing mechanism.
Start-Up: Connect the power supply and control hoisting, trolley travel, and jib slewing via the pendant or wireless remote control.
Lifting Operations: Keep the load stable during lifting, watch for personnel and obstacles when slewing the jib, and never exceed the rated capacity.
Shutdown & Maintenance: Park the hoist in the designated position and disconnect the power after operations. Periodically check slewing bearing lubrication, bolt tightness, and electrical insulation.
Why Choose Kelude Heavy Industry
Most Widely Proven in the Market: The BZD series is the best-selling standard line in the workshop jib crane segment, validated across thousands of workstations with industry-recognized reliability. Six capacity ratings from 0.25 to 5 tons make it the most versatile jib crane choice.
Standard Models, Fast Delivery: Common specifications (0.5–3 t, jib length 4–10 m) are kept in stock. Standard orders ship within 15 days, responding quickly to production line needs.
Turnkey Service: From concept design, manufacturing, and installation to commissioning, training, and after-sales support, we provide full lifecycle service with immediate phone response.
Service & Support
Kelude Heavy Industry offers full lifecycle support for BZD pillar jib cranes: pre-sales solution design, non-standard customization, factory testing, on-site installation & commissioning, operator training, and after-sales maintenance. For more models, technical parameters, and quotation estimates, call 13903802779 or chat with our sales team online — we respond within 24 hours.
FAQ
Q: Why is the BZD jib crane the most common choice for workshop workstations?
A: The BZD series covers six capacity ratings from 0.25 to 5 tons with jib radii from 2 to 20 m, making it the most widely installed standard series in the jib crane segment. Compared to KBK systems (≤500 kg), it offers higher capacity; compared to the BZZ heavy-duty series (1–10 tons), it delivers better cost-effectiveness. It is the value choice for light-to-medium duty workstation lifting. Standard CD1/MD1 hoist components are readily available, keeping long-term maintenance costs low.
Q: What is the difference between a column cantilever crane and a mobile jib crane?
A: A column cantilever crane has its column fixed to a foundation, with the jib slewing to cover a fixed workstation — ideal for stationary workstations. A mobile jib crane (e.g., wall-traveling or KBK rail-mounted types) moves along rails, covering multiple stations over longer distances. The two have different structures and application scenarios; the choice depends on your workstation layout.
Q: Which design and manufacturing standards apply to BZD column cantilever cranes?
A: Design & manufacturing comply with GB/T 3811 Crane Design Standard and JB/T 8906 (Jib Crane Standard). The hoisting mechanism (CD1/MD1 electric hoist) complies with JB/T 9008 (Wire Rope Hoist Standard), and safety devices meet TSG Q7014 requirements.
Q: How much does a BZD column cantilever crane cost?
A: Pricing varies by lifting capacity and jib length. Small units (0.25–1 t) range from RMB 8,000–20,000; medium units (2–3 t) from RMB 20,000–40,000; and large units (5 t) from RMB 40,000–80,000. Final pricing depends on jib length, lifting height, and any non-standard customizations required.
